Type safety in the world of graph databases

Agenda

1. graphs: what and when
2. query languages
3. type safety with gremlin-scala

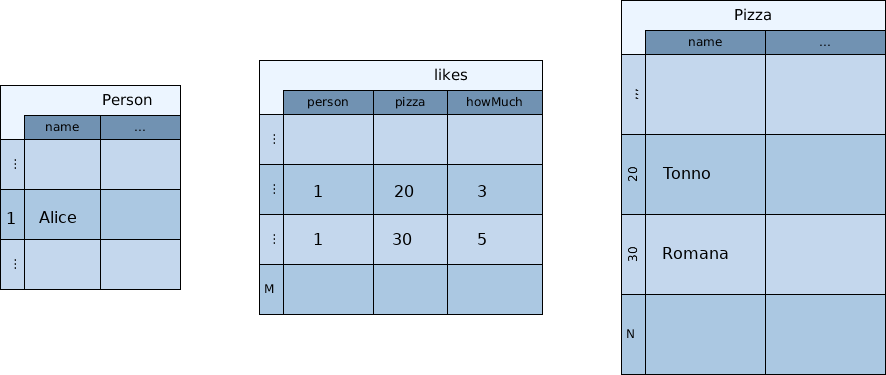

Relational db anyone?

relations in sql

SELECT pizza.name
FROM Person as person
JOIN Likes as likes ON person.id = likes.person
JOIN Pizza as pizza ON likes.pizza = pizza.id AND
WHERE person.id = 1


              g.V(1).out("likes").values("name")

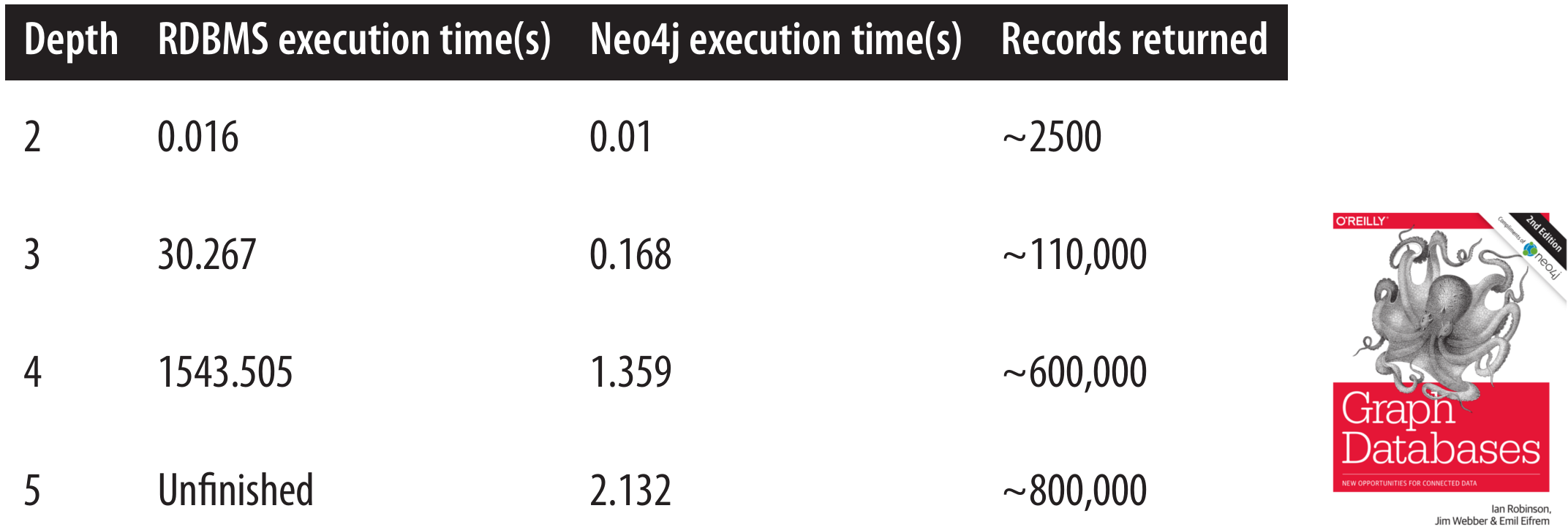

(friends of friends)^n

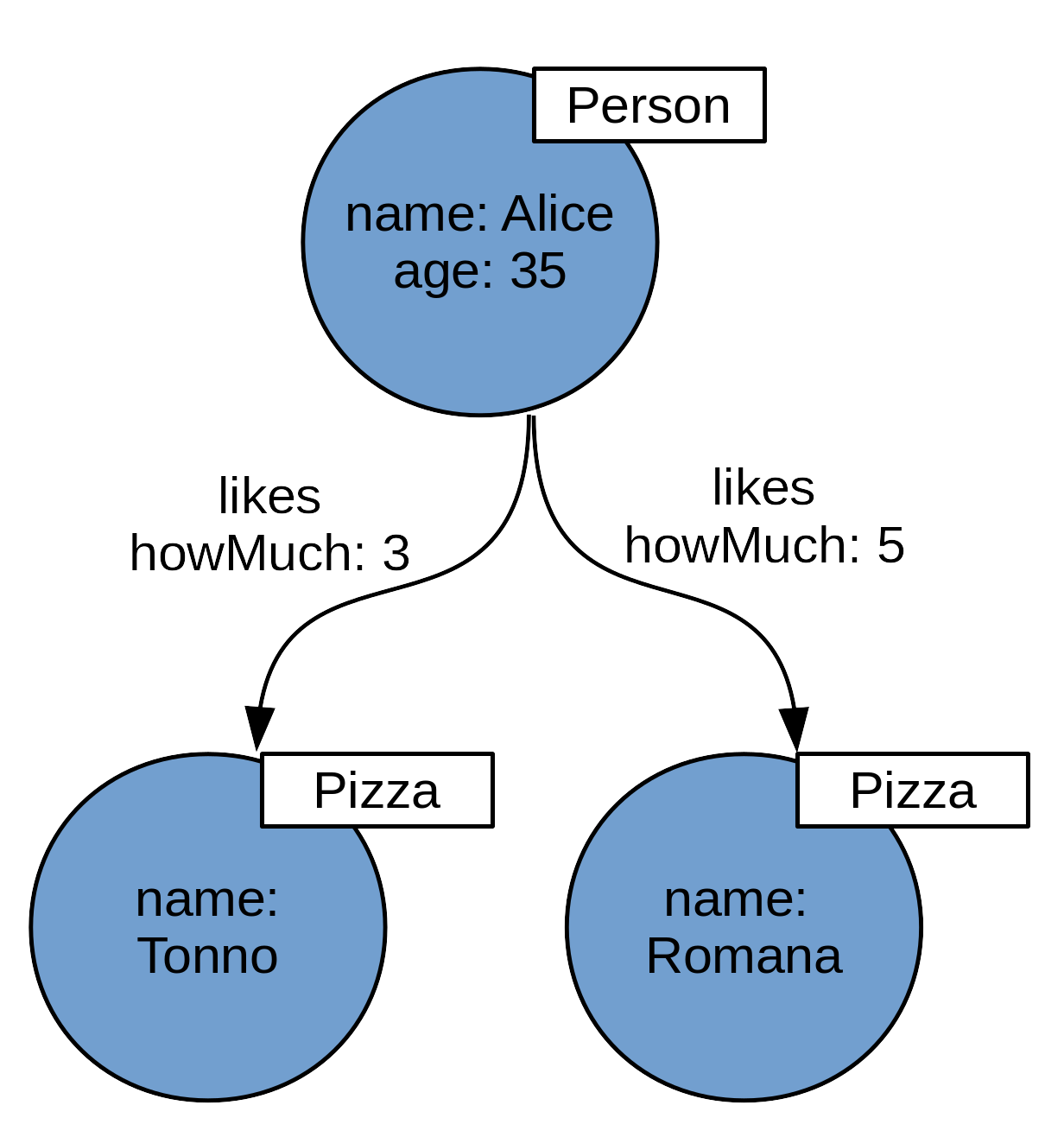

Property Graph

Query languages

Cypher

MATCH (Actor {name: 'Woody Allen'})
      -[:ACTED_IN]->(movie:Movie)
WHERE movie.year > 2010
RETURN movie


SPARQL (W3C)

PREFIX info:  <http://somewhere/peopleInfo#>
PREFIX vcard: <http://www.w3.org/2001/vcard-rdf/3.0#>

SELECT ?name ?age
WHERE
{
    ?person vcard:FN  ?name .
    OPTIONAL { ?person info:age ?age . }
    FILTER ( !bound(?age) || ?age > 24 )
}


Gremlin (Apache TinkerPop)

g.V().has("name", "Alice")
     .out("likes")
     .values("name")


setup

              import gremlin.scala._
              implicit val graph = TinkerGraph.open.asScala


schema

object PersonNode {
  val label = "person"
  val name = Key[String]("name")
  val age = Key[Int]("age")
}

object LikesEdge {
  val label = "likes"
  val howMuch = Key[Double]("howMuch")
}


arrow syntax

              val alice = graph + (person, name -> "alice", age -> 35)
              val tonno = graph + (pizza, name -> "tonno")

              alice --- likes --> tonno
              alice --- (likes, howMuch -> 3) --> tonno


case classes

              case class Person(@id id: Option[Int] = None,
                                name: String,
                                age: Option[Int])

              val alice = graph + Person(name = "alice", age = Some(35))
              alice.toCC[Person] // Person with id set


traversal basics

              val g = graph.traversal


              g.V        // GremlinScala[Vertex]
              g.V.toList // List[Vertex]


              g.V(1)            // GremlinScala[Vertex]
              g.V(1).headOption // Option[Vertex]


out/outE

g.V(1).out(likes)      // GremlinScala[Vertex]


g.V(1).outE(likes).inV // GremlinScala[Vertex]


out/in

              g.V(1)       // Alice
               .out(likes) // pizzas Alice likes
               .in(likes)  // people who like the same pizzas
               .out(likes) // pizzas those people like


has step

g.V.hasLabel(person)

g.V.has(name)

g.V.has(age, P.between(25, 35))

group

                g.V.group(By.label)
                // GremlinScala[Map[String, Collection[Vertex]]]


                g.V.group(By(__.outE.count))
                // GremlinScala[Map[Long, Collection[Vertex]]]


                g.V.has(age).groupCount(By(age))
                // GremlinScala[Map[Int, Long]]


repeat

                g.V(1).repeat(_.out).times(3)


                g.V(1)
                .repeat(_.out)
                .until(_.outE.count.is(P.eq(0)))


as/select

              g.V.as("a")
                .outE.as("b")
                .value(howMuch).as("c")
                .select()
              // GremlinScala[(Vertex, Edge, Double)]


catch errors at compile time

                g.V.outE.outE
                // cannot prove that `Edge <:< Vertex`


                g.V(1).property(name, 5)
                // name: Key[String]


                g.V.value(name).mean
                // No implicit view available from String => Number


custom dsl

              g.person("Alice").likes(ratedAtLeast = 3)


              g.V.hasLabel(person)
               .has(name, "Alice")
               .outE(likes).has(howMuch, P.gte(3))
               .inV
              // GremlinScala[Vertex]


Downsides

• db maturity
• db driver
• tooling

Summary

• graphs: simpler model for relational domains
• less mature than relational dbs
• active, open and closed source
• gremlin-scala

thank you!
